Model: DS Electro-hydraulic Servo Dynamic and Static Universal testing machine
Max Static test force: 50/100/250/500/1000KN
Max Dynamic test force:50/100/250/500/1000KN
Max amplitude of actuator :±75mm
Servo control system:Germany DOLI EDC-580 or USA MPS FP40
- Product Detail
- Now Inquiry
- Browse Other Products

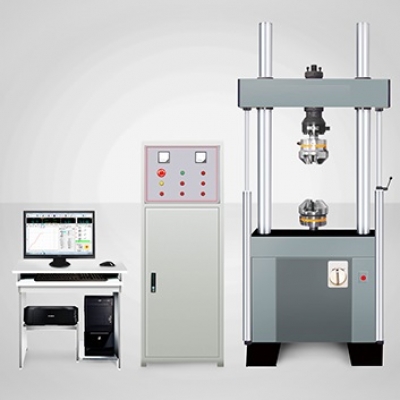

UTM-DS Electro-hydraulic servo dynamic and static Universal Testing Machine
Electro-hydraulic servo dynamic and static universal testing machine is widely used for dynamic and static mechanical property test on materials and components, including tensile, compression, low-cycle and high-cycle fatigue test. Equipped with high and low temperature chamber, it can do mechanical test under high and low temperature.
It is one of our latest developed series dynamic and static universal testing machines. Key parts of main machine, constant voltage servo station and hydraulic pressure chuck are designed and manufactured by our company, key bought-in parts like servo valve and sealing element are all use international and domestic similar famous brand products, greatly improving stability and reliability of the system. the whole performance of the testing machine has a comparable level to the product technology of international advanced products.
Technical parameter:
|
Model |
DS-20 |
DS-50 |
DS-100 |
DS-250 |
DS-500 |
DS-1000 |
|
|
Max Static test force |
20 KN |
50 KN |
100 KN |
250 KN |
500 KN |
1000KN |
|
|
Max Dynamic test force |
20 KN |
50 KN |
100 KN |
250 KN |
500 KN |
1000KN |
|
|
Max amplitude of actuator |
±75mm |
||||||
|
Static Value accuracy： |
±0.5%； |
||||||
|
Deformation accuracy |
±1% |
||||||
|
Main structure |
Double column |
Four colum |
|||||
|
Tensile Test Space m |
650mm |
750mm |
1000mm |
||||
|
Column distance |
460mm |
530mm |
635mm |
850x500 |
840x500 |
||
-
